Problem

1. Self-Announcing Netprobe starts up but unable to connect to my Gateway.


2. Self-Announcing Netprobe does not show up in my Active Console.

Possible Causes

Root Cause 1 - Network connectivity issue between Gateway and Netprobe.

Root Cause 2 - Self-Announcing Netprobe is disabled on the Gateway.

Root Cause 3 - Self-Announcing Netprobe limit is reached on the Gateway.

Root Cause 4 - Gateway connection detail is missing or wrong secure port type is used in the Self-Announcing Netprobe setup file.

Root Cause 5 - Configuration conflict. The probe name or managed entity name specified in the Netprobe setup file is already in use by a Netprobe or managed entity in the Gateway setup file.

Root Cause 6 - Self-Announcing Netprobe token is missing in the License Daemon.

Root Cause 7 - Self-Announcing Netprobe version 5.2 or later, that is configured with a Dynamic Entities Mapping type, will not connect to a Gateway version 5.1.x or earlier.

Root Cause 8 - Self-Announcing Netprobe version is older than the minimum Netprobe version specified by the Gateway.

Possible Solutions

Solution Root Cause 1 - Verify that there is no network connectivity issue between the Gateway and Netprobe hosts. You may try running ping and traceroute commands on the Netprobe host. You may also want to test connecting the gateway port, which includes an ORB debug page accessible with HTTP requests.
e.g. if the Netprobe is installed on Linux, the curl command can be used.

curl -v http://mygatewayhost.example.com:7039/orb

If the Self-Announcing Netprobe is behind a firewall, you may prefer the Self-Announcing Netprobe to initiate the connection to the chosen Gateway. To do so, the "enableReverseConnections" setting in the Gateway (screenshot below for reference) and the "requireReverseConnections" setting in the Netprobe setup file (setting reference below) must both be enabled. This is known as the reverse connection process.

Enable reverse connections setting:

Netprobe setup file setting:

<requireReverseConnection>true</requireReverseConnection>

Solution Root Cause 2 -Verify that the "Self announcing probes" setting is enabled on the Gateway (screenshot below for reference). If not, a  "Self-Announced Probes disabled" message will be recorded in the Netprobe and Gateway logs.

Example Netprobe log:

2021-08-02 12:43:06.502-0400 INFO: SelfAnnouncing Connected to Gateway nysupsvr10:61161
2021-08-02 12:43:06.603-0400 INFO: SelfAnnouncing Gateway GW2-klee-SSL_64 (nysupsvr10:61161) will not accept Self-Announcing probe: Self-Announced Probes disabled for this gateway

Example Gateway log:

2021-08-02 12:47:06.336-0400 INFO: SelfAnnouncingProbeManager Connection received from Self-Announcing Netprobe nysupsvr21.ny.us.itrs:51141
2021-08-02 12:47:06.337-0400 INFO: SelfAnnouncingProbeManager Not accepting self announced probe. This feature has been disabled in GW config.
2021-08-02 12:47:06.337-0400 INFO: SelfAnnouncingProbeManager Sending data to Self-Announcing Netprobe 'SelfAnnouncing-nysupsvr21.ny.us.itrs-51141-autodiscovery' nysupsvr21.ny.us.itrs:51141: Will not accept probe. 'Self-Announced Probes disabled for this gateway'

Self-Announcing Enabled setting:

Solution Root Cause 3 - Increase the number defined in "Self announcing probes" -> "Probe limit" on the Gateway. If the limit is reached, a "Self-Announced Probe Limit reached" message will be recorded in the Netprobe and Gateway logs.

Example Netprobe log:

2021-08-02 13:25:49.633-0400 INFO: SelfAnnouncing Connected to Gateway nysupsvr10:61161
2021-08-02 13:25:49.734-0400 INFO: SelfAnnouncing Gateway GW2-klee-SSL_64 (nysupsvr10:61161) will not accept Self-Announcing probe: Self-Announced Probe Limit reached

Example Gateway log:

2021-08-02 13:25:49.706-0400 INFO: SelfAnnouncingProbeManager Connection received from Self-Announcing Netprobe nysupsvr21.ny.us.itrs:51143
2021-08-02 13:25:49.706-0400 INFO: SelfAnnouncingProbeManager Not accepting self announced probe. Limit reached (probe connected 2, probe limit 2)
2021-08-02 13:25:49.707-0400 INFO: SelfAnnouncingProbeManager Sending data to Self-Announcing Netprobe 'SelfAnnouncing-nysupsvr21.ny.us.itrs-51143-autodiscovery' nysupsvr21.ny.us.itrs:51143: Will not accept probe. 'Self-Announced Probe Limit reached'

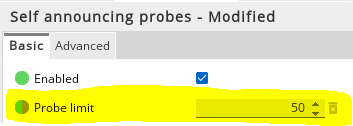

Probe limit setting:

Solution Root Cause 4 - Verify the Gateway connection details and ensure it is defined correctly in the Self-Announcing Netprobe setup file. Check for any typos in the hostname, port and secure type for the Gateway connection. Ensure the Self-Announcing Netprobe is not trying to connect insecurely to a secure Gateway port. Or the Self-Announcing Netprobe is not trying to connect securely on an insecure Gateway port.

Solution Root Cause 5 - If the probe or managed entity name specified in the Netprobe setup file is already in use by another probe or managed entity on the Gateway, then an "already exists" info message indicating such name is already in use will be recorded in both the Netprobe and Gateway logs. To address the issue, update the configuration to ensure the name is unique across the Gateway.

Example messages when same probe name is in use:

Netprobe log:
2021-08-15 11:00:18.415-0400 INFO: SelfAnnouncing Gateway GW2-klee-SSL_64 (nysupsvr10:61161) will not accept Self-Announcing probe: Probe SelfAnnouncing-51145 already exists.

Gateway log:
2021-08-15 11:00:18.369-0400 INFO: SelfAnnouncingProbeManager Sending data to Self-Announcing Netprobe 'SelfAnnouncing-51145' nysupsvr21.ny.us.itrs:51145: Will not accept probe. 'Probe SelfAnnouncing-51145 already exists.'

Example messages when same managed entity name is in use:

Netprobe log:
2021-08-15 11:33:09.341-0400 INFO: SelfAnnouncing Gateway GW2-klee-SSL_64 (nysupsvr10:61161) will not accept Self-Announcing probe: ManagedEntity SelfAnnouncing-nysupsvr21-51145 already exists on probe 'nysupsvr21_ga590_51170'

Gateway log:
2021-08-15 11:33:09.252-0400 INFO: SelfAnnouncingProbeManager Sending data to Self-Announcing Netprobe 'SelfAnnouncing-51145' nysupsvr21.ny.us.itrs:51145: Will not accept probe. 'ManagedEntity SelfAnnouncing-nysupsvr21-51145 already exists on probe 'nysupsvr21_ga590_51170'.'

Solution Root Cause 6 - If the License daemon is missing the Self-Announcing Netprobe token then the Gateway won't be able to add any Self-Announcing Netprobe connections. A "Self Announcing Probes feature not licensed" message will be recorded in the Netprobe and Gateway logs.

Example Netprobe log:

2021-08-04 15:06:22.128-0400 INFO: SelfAnnouncing Connected to Gateway nysupsvr10:61161
2021-08-04 15:06:22.229-0400 INFO: SelfAnnouncing Gateway GW2-klee-SSL_64 (nysupsvr10:61161) will not accept Self-Announcing probe: Self Announcing Probes feature not licensed

Example Gateway log:

2021-08-04 15:06:22.129-0400 INFO: SelfAnnouncingProbeManager Connection received from Self-Announcing Netprobe nysupsvr21.ny.us.itrs:51141
2021-08-04 15:06:22.129-0400 INFO: SelfAnnouncingProbeManager Sending data to Self-Announcing Netprobe 'SelfAnnouncing-nysupsvr21.ny.us.itrs-51141-autodiscovery' nysupsvr21.ny.us.itrs:51141: Will not accept probe. 'Self Announcing Probes feature not licensed'

You can verify if the "self-announcing-probes" token is available by connecting to the License daemon http(s)://LicenceDaemonIPAddress:7041/licensing/. If it is missing, please raise a a ticket so we may follow up with your ITRS account manager for approval to update the license.

Solution Root Cause 7 - Upgrade the Gateway and Licence Daemon to the same version or later than GA5.2. Otherwise, a failed connection will be recorded in the Netprobe log, with a warning that the Gateway version is too old.

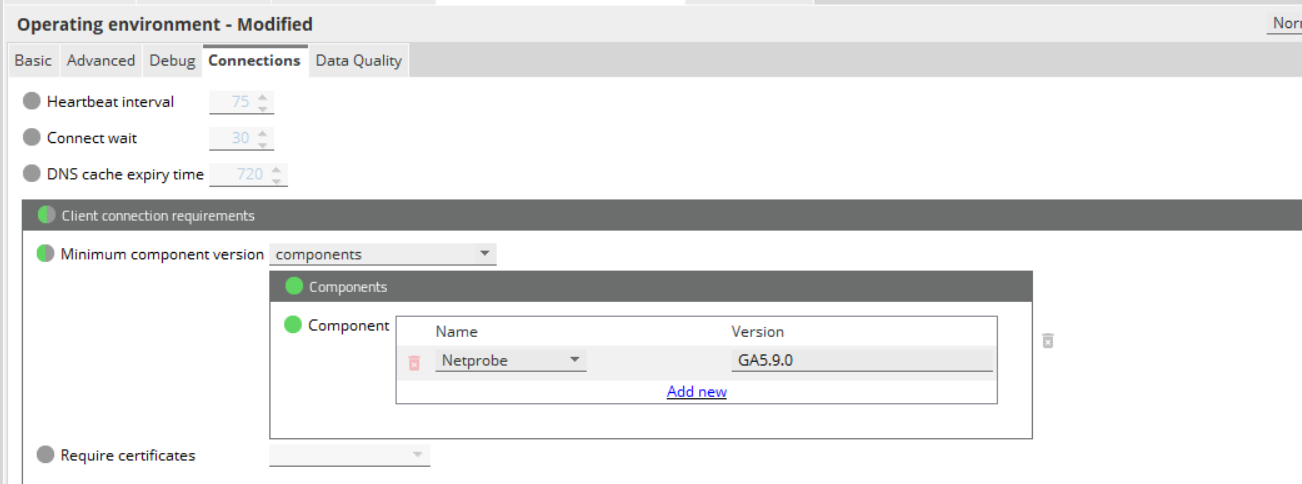

Solution Root Cause 8 - Adjust the setting if needed in the Gateway -> Operating environment -> Connections -> Client connection requirements -> Minimum component version.

Example gateway log:

2021-08-14 21:29:06.821-0400 INFO: OperatingEnvironment Netprobe rejected because older than version 'GA5.9.0'. Version:GA5.8.2-210629 Host:nysupsvr21.ny.us.itrs (192.168.2.33)

Related Articles

• Manage Self-Announcing Netprobes
• Netprobe Troubleshooting
• Licence Daemon Reporting

If Issue Persists

• Please contact with our Client Services team via the chat service box available in any of our websites or via email to support@itrsgroup.com



• Make sure you provide to us:
  -The complete Netprobe log and the Netprobe setup file
  -Gateway Diagnostics file
  -Gateway Log file (if Gateway Diagnostics not provided)
  -Any troubleshooting steps already verified from the ones described in this article.
