Pass values from cell to be available. Pass parameters, xpaths, get rowname into a command.


Problem

1. I want to use a value in a cell to make available to a command.

Possible Solutions

Solution Root Cause 1 - Create a command and add the appropriate x-paths

Example

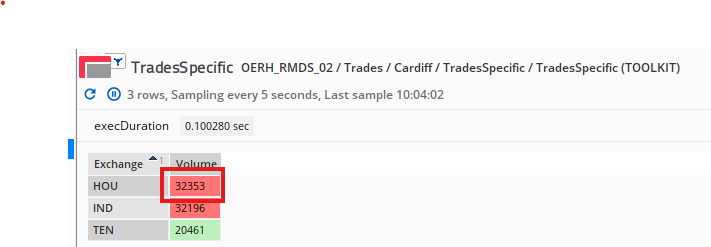

I have the following dataview and I want to pass the value of a cell into a command - as highlighted in the below screenshot

The Below command will achieve this

<command name="Gateway Echo Test Xpath Table Cell">
    <targets>
        <target>/geneos/gateway/directory/probe/managedEntity/sampler/dataview/rows/row/cell</target>
    </targets>
    <userCommand>
        <type>script</type>
        <runLocation>gateway</runLocation>
        <args>
            <arg>
                <static>/bin/echo</static>
            </arg>
            <arg>
                <xpath>ancestor::gateway/directory/@name</xpath>
            </arg>
            <arg>
                <xpath>ancestor::probe/parameters/@HostName</xpath>
            </arg>
            <arg>
                <xpath>ancestor::managedEntity/@name</xpath>
            </arg>
            <arg>
                <xpath>ancestor::sampler/@name</xpath>
            </arg>
            <arg>
                <xpath>ancestor::dataview/@name</xpath>
            </arg>
            <arg>
                <xpath>@rowname</xpath>
            </arg>
            <arg>
                <xpath>@column</xpath>
            </arg>
            <arg>
                <xpath>@value</xpath>
            </arg>
            <arg>
                <xpath>state/@severity</xpath>
            </arg>
            <arg>
                <xpath>@managedEntity</xpath>
            </arg>
        </args>
    </userCommand>
</command>

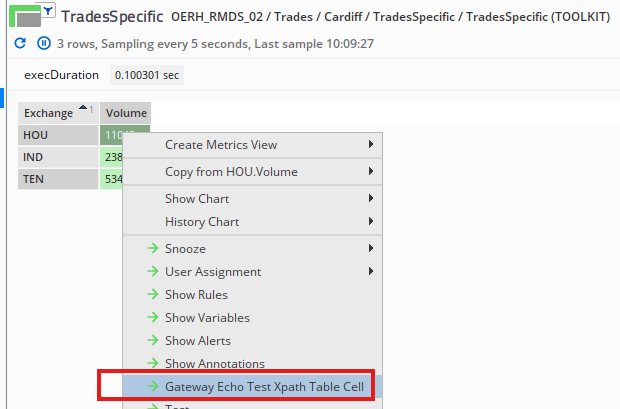

Right click the desired cell and choose the command to run

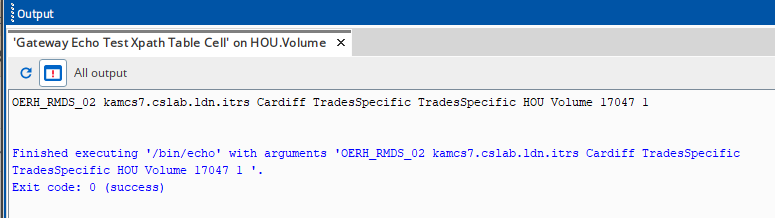

Result

Related Articles

• What_is_an_XPath
• X-paths extra information

If Issue Persists

• Please contact with our Client Services team via the chat service box available in any of our websites or via email to support@itrsgroup.com



Make sure you provide to us:

-Gateway Diagnostics File or relevant xml snippets of the command definition

- Name of the command you trying to configure

- Description of the expected result

-Screenshots of current output of your command.

-Any troubleshooting step already verified from the ones described in this article.
