1. Create the FKM sampler.

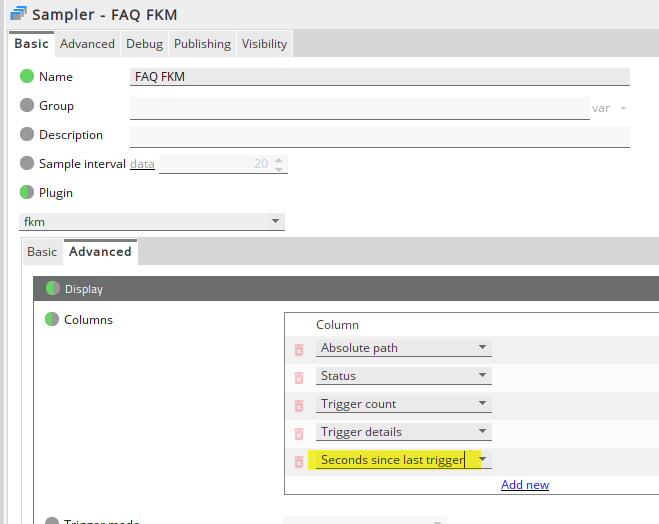

- In the 'Advanced' tab, be sure to enable 'Trigger count' and 'Seconds since last trigger' as this will be essential for your occurrence and time-based monitoring:
- More information on the FKM plugin can be found in the documentation: FKM Overview and FKM Configuration Guide.
2. Create a few actions which the rule can run.
For the purposes of this example, 3 actions have been setup:

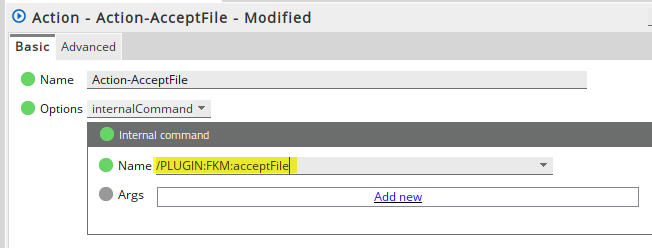

- AcceptFile - Accept the file so that the monitoring is "reset". More information can be found here.
These actions are used as a sample action for when the conditions are satisfied and no longer satisfied. Theoretically, you can setup your own actions, be it scripts, internal (Active Console) commands, or Linux commands. You can find out more from this guide.
3. Create rules to run the actions

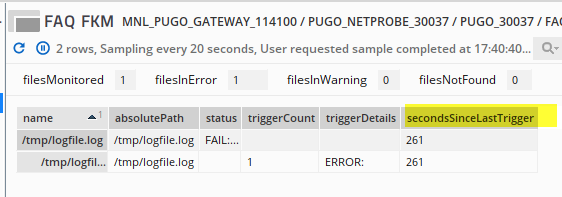

Ensure to set the path of the initial value to be monitored. Based on the current setup, the following data view is shown:
The cell "secondsSinceLastTrigger" is monitored initially.
A path alias (found on Advanced tab) for "triggerCount" was also added so that this value can be used to evaluate in rules:
The following rule block is defined to achieve the requirement:
if value > 60 and path "triggerCount" value < 5 then
elseif value < 60 and path "triggerCount" value > 5 then
value refers to "secondsSinceLastTrigger," or the time, path "triggerCount" refers to the occurrences. If a file is being monitored and it has been more than 60 seconds where the keyword trigger has occurred less than 5 times, the system will "Accept" the file so that the previous trigger details displayed on the data view are cleared, as shown in the succeeding screens below:
If the triggerCount or number of occurrences exceeds 5 and the time is within 60, then the actions are run, in this case, "Assign to me":
This may be changed to send out alerts.
The status may remain in this state until such time that the necessary actions, including accepting the file to clear the data view, is taken.
