Geneos - How to use a rule to capture the names of the headlines in a dataview which have 0 value

Avatar
ITRS Support
  • Updated
Follow

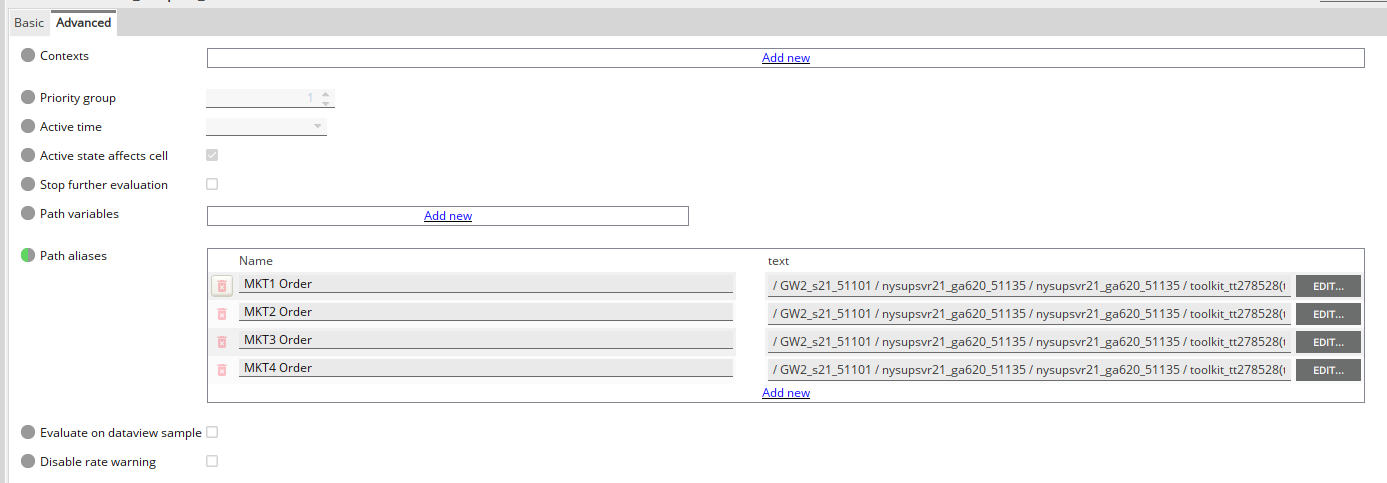

This can be done with path aliases and some string functions in the rule block.



For example, if the MKT# Order headlines below have zero values it needs to show the headline names in the "OrderValue 0 Instance" headline.

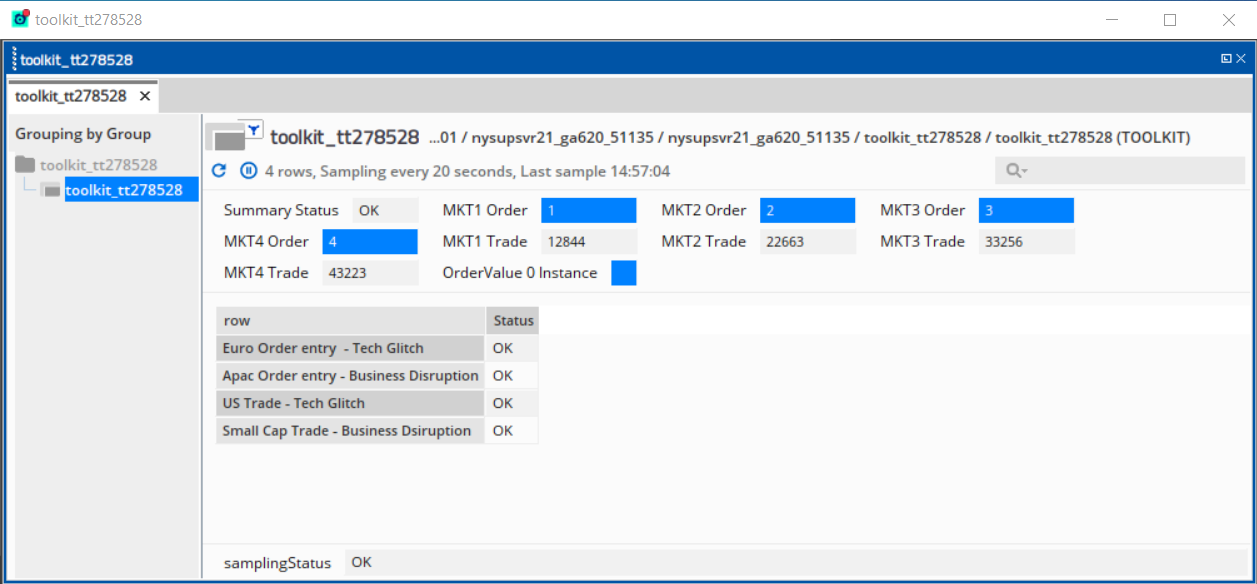

When the MKT# Order headlines have non-zero values.

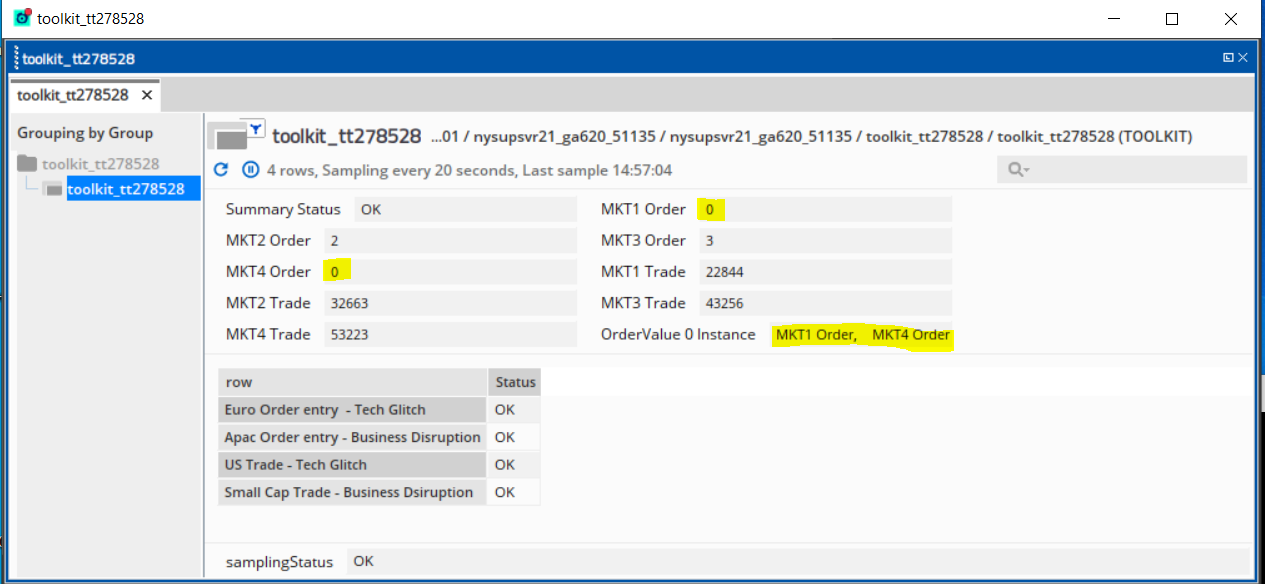

When the MKT Order headlines have 0 values.

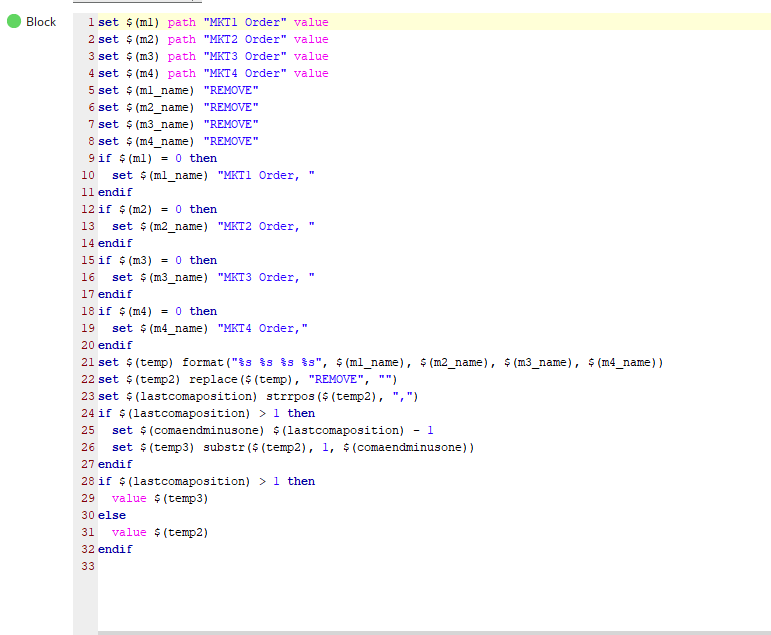

The rule block looks like below:











Attached is the xml file of the rule.





Related Articles

https://docs.itrsgroup.com/docs/geneos/current/Gateway_Reference_Guide/geneos_rulesactionsalerts_tr.html#String_Functions
