Problem:

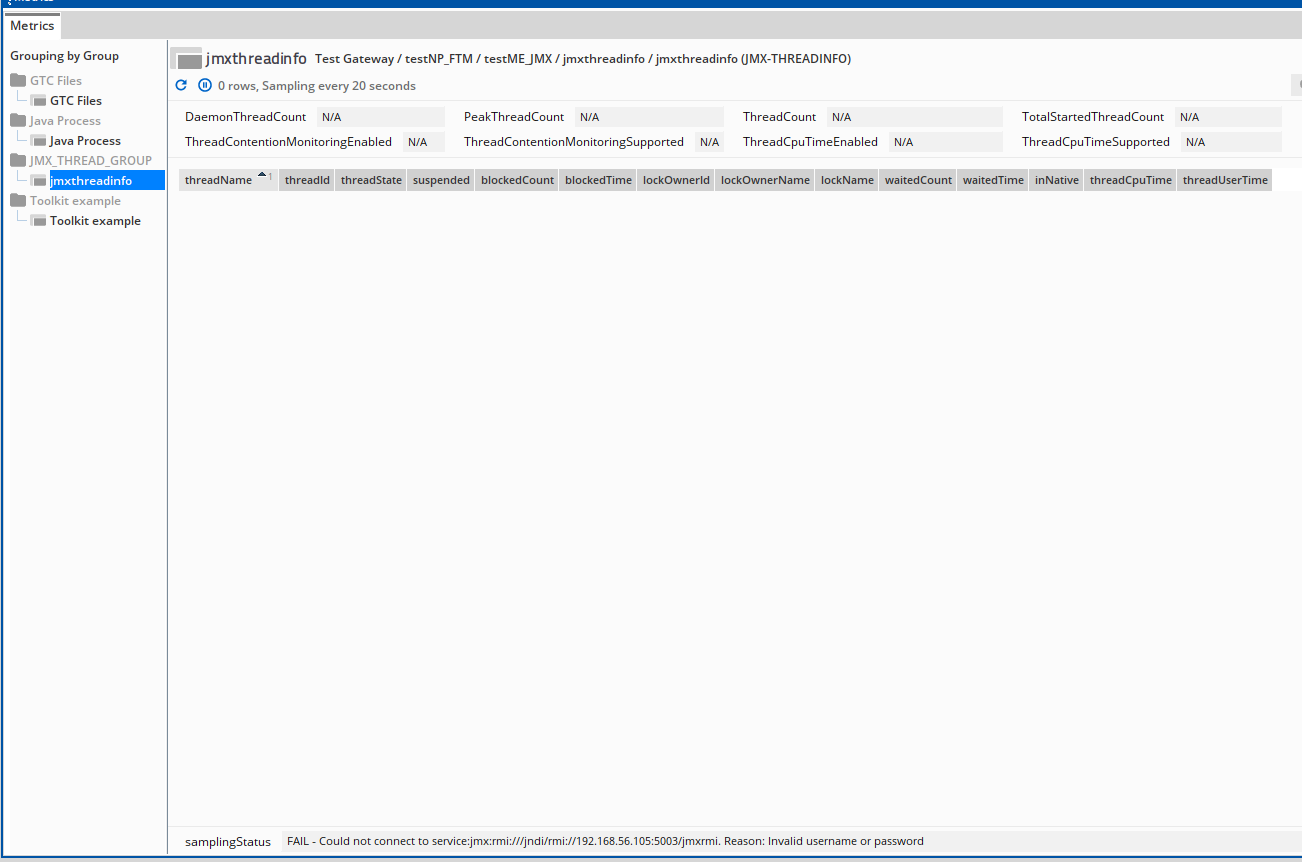

FAIL - Could not connect to service:jmx:rmi:///jndi/rmi://192.168.56.105:5003/jmxrmi. Reason: Invalid username or password
When validating: docs.itrsgroup.com/docs/geneos/current/collection/jmx-server/index.html#validating-environment-and-reachability-for-remote-application
java.lang.SecurityException: Authentication failed! Invalid username or password
at java.management/com.sun.jmx.remote.security.JMXPluggableAuthenticator.authenticationFailure(JMXPluggableAuthenticator.java:227)
at java.management/com.sun.jmx.remote.security.JMXPluggableAuthenticator.authenticate(JMXPluggableAuthenticator.java:204)
at jdk.management.agent/sun.management.jmxremote.ConnectorBootstrap$AccessFileCheckerAuthenticator.authenticate(ConnectorBootstrap.java:231)
at java.management.rmi/javax.management.remote.rmi.RMIServerImpl.doNewClient(RMIServerImpl.java:231)
at java.management.rmi/javax.management.remote.rmi.RMIServerImpl.newClient(RMIServerImpl.java:198)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:566)
at java.rmi/sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:359)
at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:200)
at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:197)
at java.base/java.security.AccessController.doPrivileged(Native Method)
at java.rmi/sun.rmi.transport.Transport.serviceCall(Transport.java:196)
at java.rmi/sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:562)
at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:796)
at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:677)
at java.base/java.security.AccessController.doPrivileged(Native Method)
at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:676)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at java.base/java.lang.Thread.run(Thread.java:829)
at java.rmi/sun.rmi.transport.StreamRemoteCall.exceptionReceivedFromServer(StreamRemoteCall.java:304)
at java.rmi/sun.rmi.transport.StreamRemoteCall.executeCall(StreamRemoteCall.java:280)
Possible cause(s):
-
Root Cause 1: The login credentials you entered (username or password) are incorrect.
-
Root Cause 2: The specified password type is incorrect.
- Root Cause 3: The username and password are not configured in the JMX remote access and password files.
Possible solution(s):

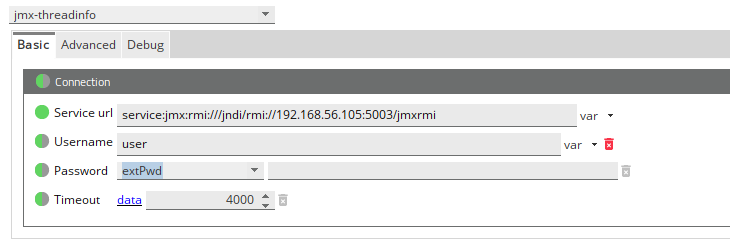

- Solution Root Cause 1: Ensure that the login details are correct. If you're unsure, verify with the user or team handling the JMX-enabled application.

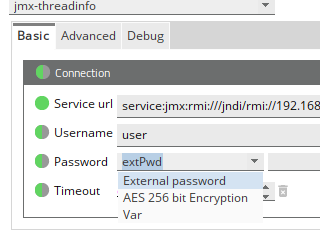

- Solution Root Cause 2: Ensure that you have selected the correct password format. You can check this for more info: https://docs.itrsgroup.com/docs/geneos/current/security/access-controls/gateway_secure_passwords/index.html
-
Solution Root Cause 3: If your JMX-enabled application requires password files and access files to, you must configure these credentials in the
jmxremote.access
andjmxremote.password
files. For more info: https://docs.itrsgroup.com/docs/geneos/current/collection/jmx-server/index.html- Validating with correct username and password: Mbeans are displayed
user@admin:~/Documents/netprobe/jars$ java -jar geneos-plugins.jar jmx Generic rmi:///jndi/rmi 192.168.56.105 5003 4000 jmxrmi *:* username password
Found 25 managed beans
Dumping managed bean information to standard out... Please wait
Bean#1
ObjectName=java.lang:name=Metaspace,type=MemoryPool
Attributes:
Type=class java.lang.Boolean, Name=Valid, Value=true
Type=class java.lang.String, Name=Name, Value=Metaspace
Type=class java.lang.String, Name=Type, Value=NON_HEAP
Type=class javax.management.openmbean.CompositeDataSupport, Name=Usage, Value=javax.management.openmbean.CompositeDataSupport(compositeType=javax.management.openmbean.CompositeType(name=java.lang.management.MemoryUsage,items=((itemName=committed,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=init,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=max,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=used,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)))),contents={committed=10747904,init=0,max=-1,used=9762680})
Type=class javax.management.openmbean.CompositeDataSupport, Name=PeakUsage, Value=javax.management.openmbean.CompositeDataSupport(compositeType=javax.management.openmbean.CompositeType(name=java.lang.management.MemoryUsage,items=((itemName=committed,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=init,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=max,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)),(itemName=used,itemType=javax.management.openmbean.SimpleType(name=java.lang.Long)))),contents={committed=10747904,init=0,max=-1,used=9762680})

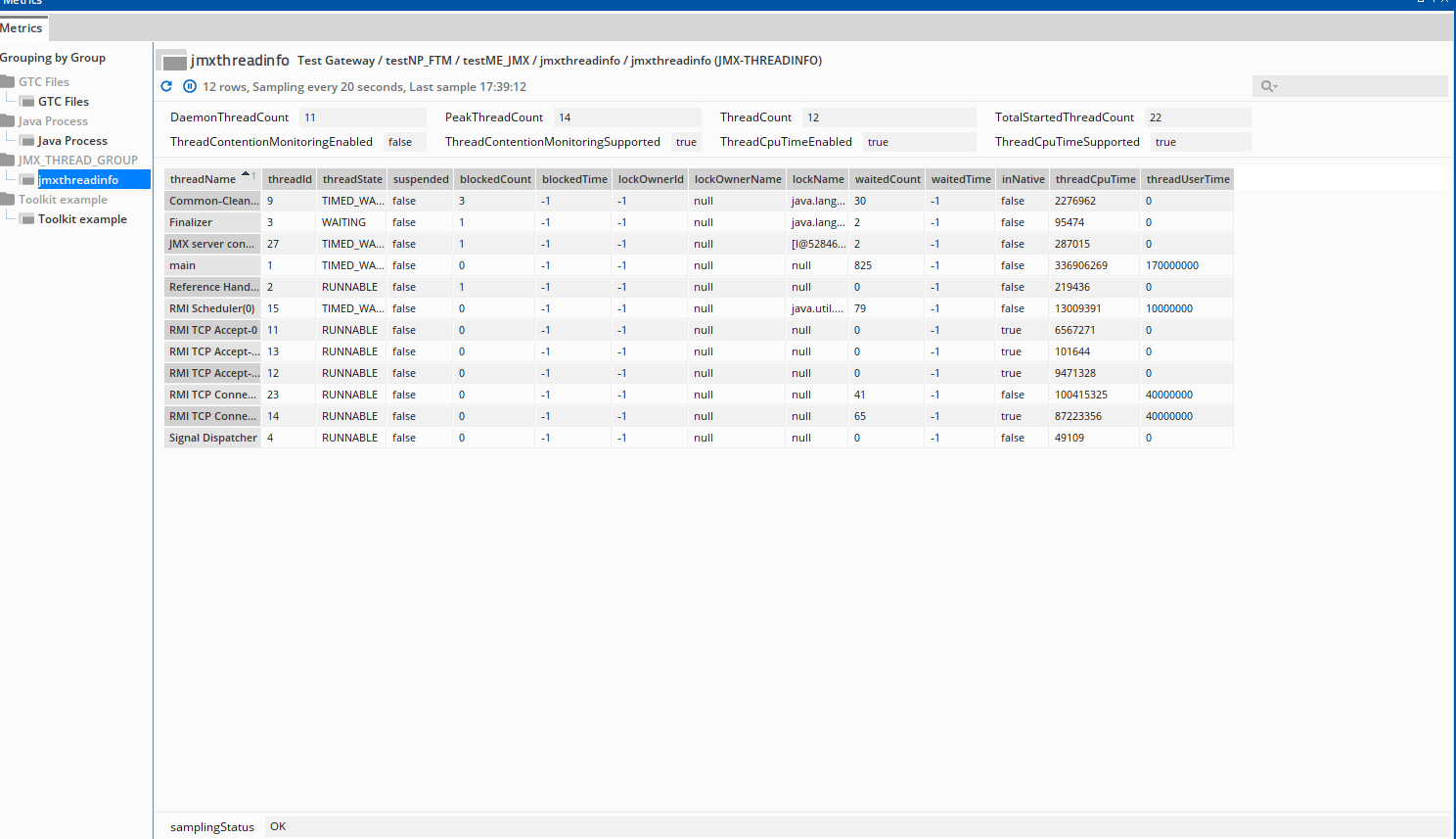

Output: Status Ok
Related article(s):
If you need further help:
-
Please contact our support team via the chat service box on any of our websites or email us at support@itrsgroup.com.
-
Make sure you provide us with:
- JMX validation output from https://docs.itrsgroup.com/docs/geneos/current/collection/jmx-server/index.html#validating-environment-and-reachability-for-remote-application
- Background of the issue or request.
- Use cases, requirements, business impact, etc.
- Encountered error messages.
- Log files or diagnostic files.
- Screenshots.
- And other important information relevant to your inquiry.
